JR Propo S8477BL 2K

Article no.: JR78682

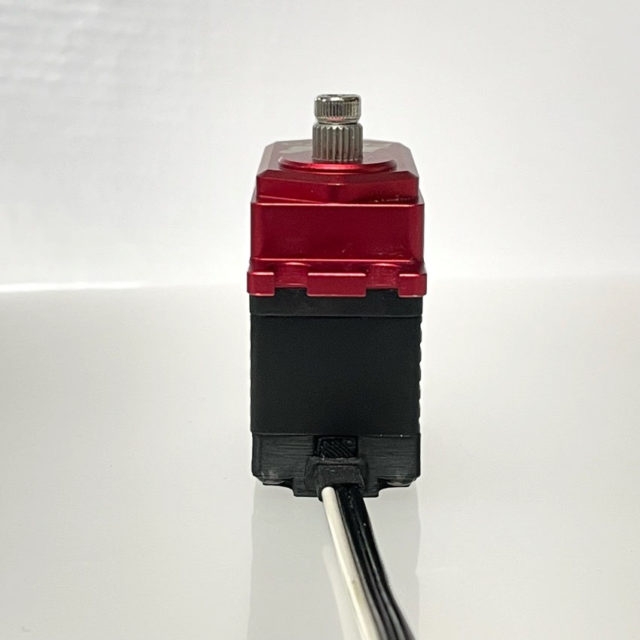

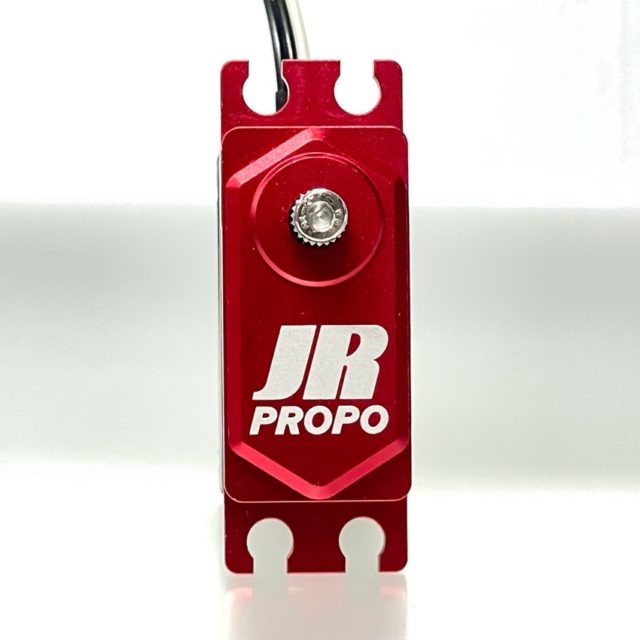

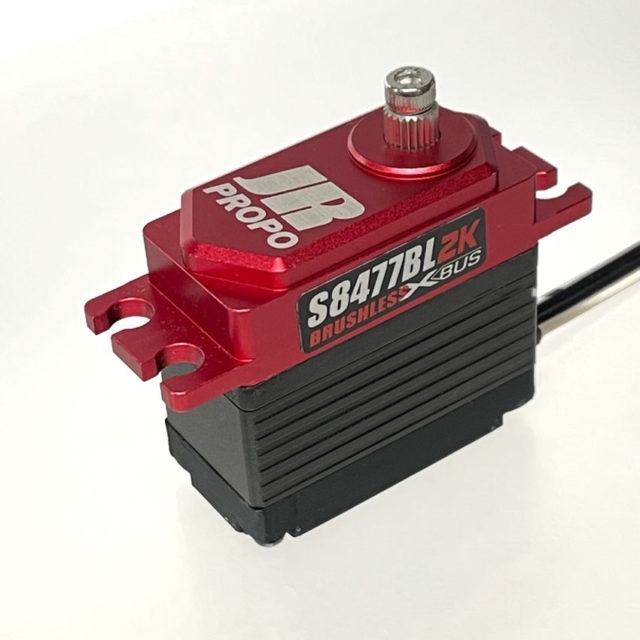

JR Propo S8477BL 2K - Brushless motor

NOK1 795,00 Incl. VAT
In stock: 3 pc.
  • Productinfo
  • Product reviews (0)

Stall Torque: 36.0 (8.4V) kg・cm, 31.7 (7.4V) kg・cm, 28.3 (6.6V) kg・cm

Speed: 0.10 (8.4V) Sec/60°, 0.11 (7.4V) Sec/60°, 0.13 (6.6V) Sec/60°

Weight: 60 g

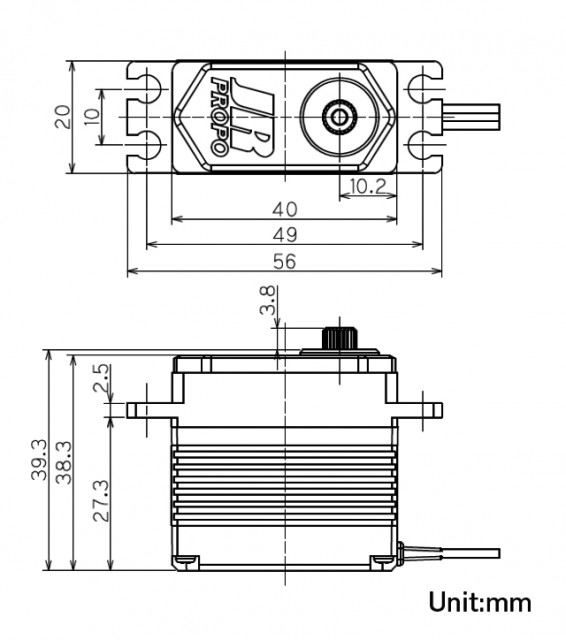

Dimension: 40×20×39.5mm

Length of lead harness: 300mm

Operating Voltage: 4.5V - 8.5V

■ Programmable

 Nutral, endpoint, gain, etc (Works with PWM XBUS) 120°150°180° (Works with PWM  XBUS), Synchronization (Works with PWM XBUS)
■ Super steel full metal gear(Gear B brass)
■ Wide voltage
■ Upper ball bearing (10x6),  bottom (10x6)

■ Special design Brushless motor



The firmware in a 2K servo verifies the position of the servo arm two thousand times each second,
while the firmware found in previous servos verify the arm's position one thousand times per second.
This greater number of verifications makes for a very precise servo, and gives it a more "solid" feel.

It is recommended to use a booster cable with 2k servos to ensure steady voltage at all times.
