This is a highly developed product with outstanding functionality that concentrates the essence of the technology built up by this JR PROPO through many decades of experience. Highest reliability of JR PROPO DMSS2.4GHz RF system provided to our complete new highest end product “ELITE” has debuted.
The processing speed of the program largely improved, brushing up a system one by one.

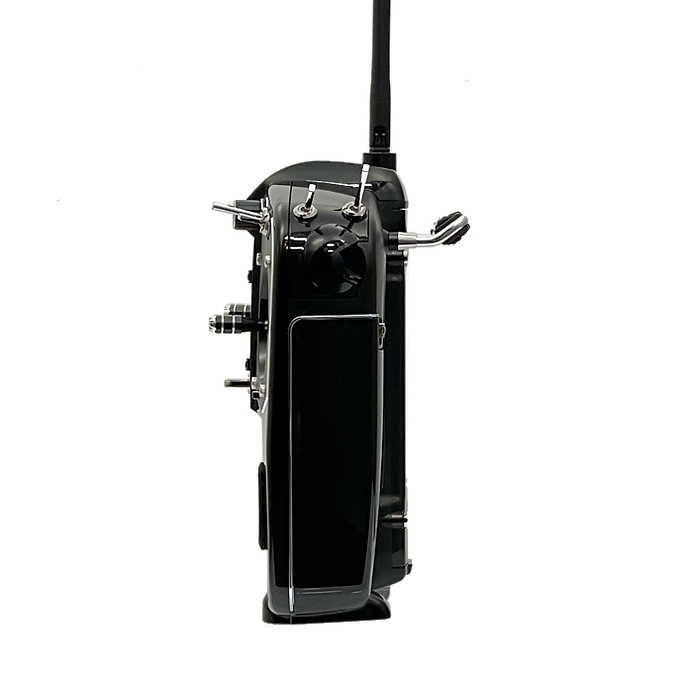

The flat design which eases for handling and CNC full metal gimbals maintain ultimate operability. 2.5mm Metal front garnish utilized the stiffness over the transmitter case and made the whole transmitter as light as possible.
Conventional “PWM” or serial Bus communication of JR original protocol “XBus” are available for the control system.
Newly developed servo “ID” scan function is equipped, previous transmitter was not able to find the Servo ID but now it is possible to find the ID.
The new era shall begin.
System
━━━━━━━━━━━━━━━━━━━━━━━━━
Modulation: DMSS (Dual Modulation Spectrum System)
Type of control：28 Channel Computer Mixing
Radio Frequency：2.4GHz
Power source：7.2V Lithium Ion battery
Neutral position：1.5ms
Channel numbers：16ch （FAST MODE）/ Maximum 28ch （FAST 12ch / SLOW 16ch combined）
Weight: 940 g (without battery)
Features
■ CNC machined and painted transmitter case components

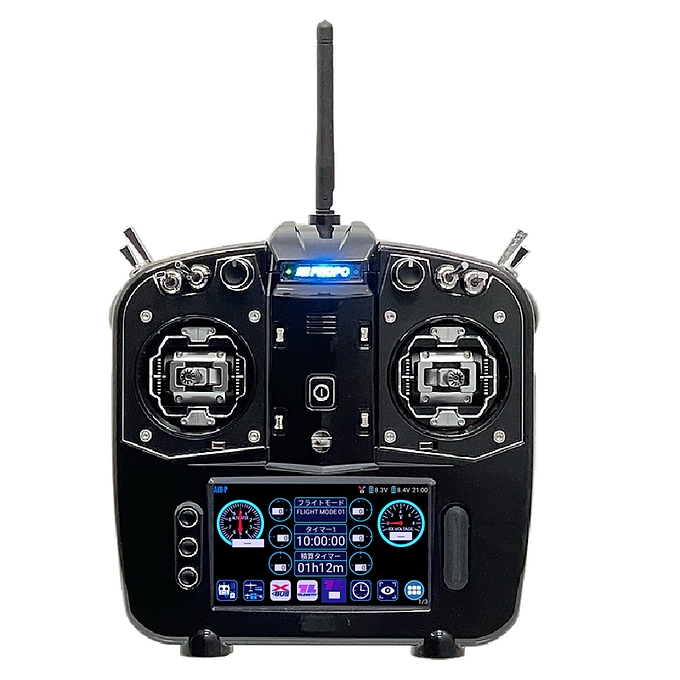

■ Quick response touch screen

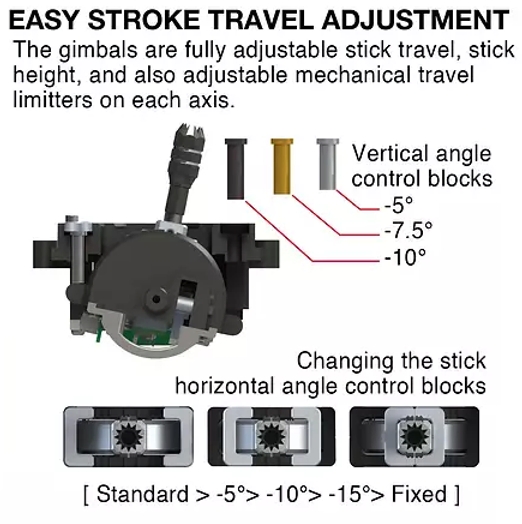

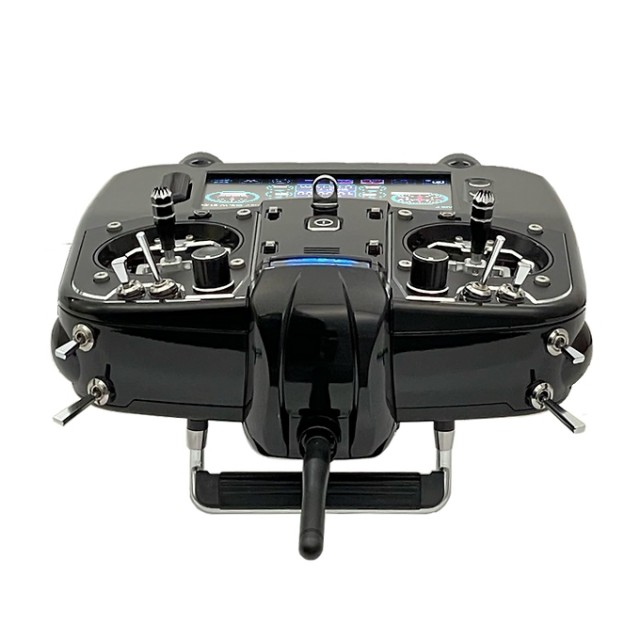

■ Precise CNC machined metal stick gimbals
■ The latest Android format & new main mother board
■ High resolution Stick Control
■ CPU Cooling fan (automatic temperature sensing)
■ 28 channels in PWM mode / 64 channels in XBUS
■ The latest XBUS communication installed
■ Upgraded telemetry sensor capability/each telemetry function can handle 8 sensors
■ Voice alerts
■ XBUS Servo Programmer installed
■ Sequencer function for landing gear
■ SD Card slot available
■ USB Port Equipped (Capable to use PC Mouse operation)
-
BASIC
【Function List】
■Reverse Switch
■D/R & EXP (Dual rate, Exponential)
・2segment / maximum15systems（SW Select / each flight mode）
・Type selectable（NORM / CURVE）
・・Curve set up： Mid8points over multi points
・Position set up：Maximum 15systems
[Sub Menu]
・・・Delay Setting
・・・Auxiliary Channel
■SUB TRIM
■Travel adjusts
■Monitor (Servo monitor)
[Sub Menu]
・・・Detail of channel
・・・Servo Test（Neutral/Slow/Quick/Step）
■LIMIT ADJUST
■SERVO SPEED
・right & left （up or down） Capable to put 2segment
・2systems
■OUTPUT CURVE
・Mid8points over multi points
[Sub Menu]
・・・TRIM INPUT SETTING
■THROTTLE TRIM
・Throttle Cut （W/ Time lag function）
・Throttle Trim Memory
・Idle Adjustment
■PROGRAM MIXING
・Maximum 10systems （SW select / each flight mode）[W/Exponential]
・Type selectable (Normal/Curve)
・・Curve set up : Mid8points over multi points
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■TIMER
・3systems (Down timer/ Stop Watch)
・SW Select （Comply w/ Stick Position Switch）
・capable to set vibrator
[Sub Menu]
・・・Interval Timer
・・・Accumulation Timer , Initialize
・・・Timer record: 20files
【System List】
■MODEL SELECT
・Model Memory： Maximum 100files
[Sub Menu]
・・Backup And Restore
・・Sort
・・Display Mode
■CHANNEL SETTING
[Sub Menu]
・・・Aux Channel Setting：Up To 28ch
■TYPE SELECT
・3 Types（Airplane / Helicopter / Glider）
■FAIL SAFE
・HOLD / F.S Selectable
■WARNING
・SW SEL. / Capable to set on each flight mode
■BIND ＆ RANGE
・Model Link Bind
・Range Check
■FM SETTING
・Up To 15 Ways
[Sub Menu]
・・・Priority Setting
■XBUS SETTING
・Type Select（MODE A -JR / MODE B）
<Setting >
・Servo / Convertor
・・・ID Setting / Parameter set up
・・・ID Scan function
・Acro Gyro（AIR-P / AXIS being used）
■FM Delay
・Common set up / Independent set up
・Delay set up: Maximum delay in 10.sec
[Sub Menu]
・・・Active channel set up
■TRIM SYSTEM
・Device Select
・Reverse
・Type Setting（NORM / L.S.T.）
・Trim Motion SW select（each flight mode）
[Sub Menu]
・・・Flight Mode Group Setting
■All Servo Hold
・ON / OFF
■TRAINER
・Mode :2systems：Normal / Program
・Trainer Function mode SW select（each flight mode）
■ANALOG POSITION
・10systems
・Motion Switch select： Device/channel
■TX SETTING
<Battery>
・Priority Setting：A&B Simo / Batt A / Batt B
・Low Battery Alarm（Default：6.0V）
<Idle Alert>
・Latency：Up To 254min（Default：30min）
<System Sound>
・Tone（HIGH / LOW）
・Volume（Default：10）
<BED BRIGHTNESS＞
・Brightness（HIGH / LOW）
<Firmware Version>
[Sub Menu]
・・・Stick Calibration
■STICK ALERT（Only Throttle Ch.）
・3systems
・Alert motion SW select（Each flight mode）
■HARDWARE SETTING
・Reverse
・Input Type（Displayed value） select (analog) displayed value, select（analog）
・Calibration (Analog）
・Position setting （switch）
[Sub Menu]
・・・Stick Mode Setting（M1 / M2 / M3 / M4）
■TELEMETRY LOG
・multiple data display
-
FUNCTION FOR AIRPLANE
【Function List】
■DIFFERENTIAL
・Position Setting：Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■THROTTLE CURVE
・Maximum 15systems
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・Throttle Trim Offset
■AILE → RUDD MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・Break / Hold Setting
■PITCH CURVE
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■AILE → FLAP MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・AIL Trim Setting
■FLAP SYSTEM
・SW select / each flight mode
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■ELEV → FLAP MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■THROTTLE HOLD
・SW selectable
■RUDD → AILE / ELEV MIX
・Position setting：2systems（SW select / each flight mode）
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■SNAP ROLL
・Roll set up：4systems（SW select / each flight mode）
・Stick position SW
■GYRO SENS
・Gyro mode selection Normal /Tail lock
・・Two gyro / Dual gain : setting possible when selected w/ 2ch control
・・3 axis gyro mode :when selected as 3channel
・Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Lift up Setting.
・・・Trim Input Setting
■GEAR CONTROL
・ Mode selection ：single mode/separate mode
・Maximum 3systems （Compatible w/ Gear cover A/B control）
【System List】
■WING TYPE
・WING：14 Types
・・1 AILERON / FLAPERON / 2 AILERONS
2 AILERONS + 1 FLAP / 2 AILERONS + 2 FLAPS
2 AILERONS + 4 FLAPS / 4 AILERONS
4 AILERONS +1 FLAP/ 4 AILERONS +2 FLAPS
DELTA / DELTA+1 FLAP / DELTA+2 FLAPS
DELTA / 4 FLAPS
・TAIL：4 Types
・・1 ELEVATOR + 1 RUDDER / 2 ELEVATORS + 1 RUDDER
2 ELEVATORS +2 RUDDERS / V TAIL
・THROTTLE：4 Types
・・1 THROTTLE / 2 THROTTLES
3 THROTTLES / 4 THROTTLES
-
FUNCTION FOR HELICOPTER
【Function List】
■THROTTLE CURVE
・Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・TRIM INPUT SETTING）
・・・Hovering throttle setting (Point selection possible)
・・・Throttle trim off set
・・・ Curve type setting （NORM / GOV）
■PITCH CURVE
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・High Pitch trim setting （SW select / each flight mode）
・・・Hovering pitch trim setting (Point selection possible)
■THROTTLE MIXING
・AILE → THRO Correction
・ELEV → THRO Correction
・RUDD → THRO Correction
・・each 2 systems
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■THROTTLE HOLD
・2systems setting capable
・SW select
・Stick auto setting
・Delay Setting
■SWATH MIXIONG
・w/ exponential
[Sub Menu]
・・・E-Ring Setting
・・・Mixing Correction Setting
・・・・AILE → ELEV
・・・・ELEV → AILE
・・・・PIT → AILE
・・・・PIT → ELEV
・・・・・each 2 systems
・・・・・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu2]
・・・Delay Setting
・・・Trim Input Setting
■GYRO SENSE
・Gyro Mode Select：Normal / Tail Lock
・・Two Gyros / Dual Gain： setting possible when selected w/ 2ch control
・・3 axis gyro mode :when selected as 3channel
・Maximum 15systems （SW select / each flight mode）
[Sub Menu]
・・・Delay Setting
・・・LIFT UP SETTING
・・・Trim Input Setting
・・・CALIBRATION
■GOVERNOR
・Position Setting：Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
【System List】
■SWASH TYPE
・12 Types
・・NORMAL / 2 SERVOS 180° / 3 SERVOS 120°（2） / 3 SERVOS 135°（2）
3 SERVOS 140°（2） / 3 SERVOS 90°（2） / 4 SERVOS 90°（2）
[Sub Menu]
・・・Angle Correction（3SV135° / 3SV140° / 3SV90° / 4SV90°）
-
FUNCTION FOR GLIDER
【Function List】
■DIFFERENTIAL
・Position Setting：Up To 15 Ways
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■CAMBER SYSTEM
・each flight mode
・Delay Setting
・Break setting
[Sub Menu]
・・・Break Threshold
■BRAKE SYSTEM
・START POSITION
・SPOILER
・SPOILER → ELEV
・SPOILER → FLAP
・SPOILER → FPRN
・SPOILER → FPRN 2
・SPOILER → FPRN 2
・・each 2 systems
・・Mid8points over multi points（SW select / each flight mode）[w/exponential]
・・Speed Setting
[Sub Menu]
・・・Trim Input Setting
■MOTOR SYSTEM
・Hold Position Setting
・Delay Setting（2分割）
・Switch Select / On each Flight Mode
■RUDD → SPOILER MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■AILE → RUDD MIX
・Position Setting：Up To 15 Ways
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
・・・Break and hold setting
■ELEV → CAMB MIX
・ELEV → FLAP
・ELEV → FLAP2
・ELEV → FPRN
・ELEV → FPRN2
・・each position setting: Maximum 15systems (SW select / each flight mode）
・・Mid8points over multi points（SW select / each flight mode）[w/exponential]
[Sub Menu]
・・・Delay Setting
・・・Trim Input Setting
■FLAP LATE
・Position Setting：Up To 15 Way
・Mid8points over multi points（SW select / each flight mode）[w/exponential]
【System List】
■WING TYPE
・Wing：6 Types
・・2 AILERONS +1 FLAP / 2 AILERONS + 2 FLAP
2 AILERONS + 4 FLAP / 4 AILERONS +1 FLAP
4 AILERONS + 2 FLAP / 4 AILERONS + 4 FLAP
・TAIL ：4 TYPES
・・1 ELEVATOR + 1 RUDDER / 2 ELEVATOR + 1 RUDDER
2 ELEVATOR + 2 RUDDER / V-TAIL
・SPOILER：2 TYPES
・・1 SPOILER / 2 SPOILER
-
ETC
[ ETC ]
・Video app. （Need SD Card or USB Memory）
・Calendar app.
・Clock app.
・Music app.（Need SD Card or USB Memory）
・Calculator app.
・Explorer app.
・Settings app.
[ Widget ]
・Music ・Trim ・Timer ・RX Voltage
・Flight Mode ・Altitude★ ・RPM★ ・Altitude★
・Motive Voltage★ ・Temperature★ ・Motive Current★
・Variometer★ ・Air speed★ ・TX Battery
・Telemetry Log★ ・Capacity Watt★ ・Common
★This marking shows necessity of purchasing the optional telemetry sensors
