JR Propo MATRIX 22

Article no.: JR78948

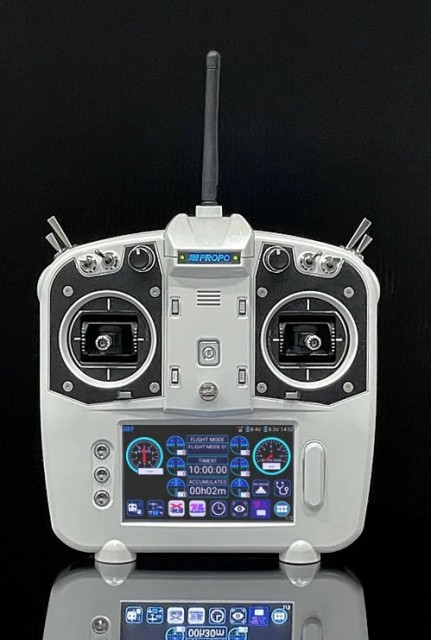

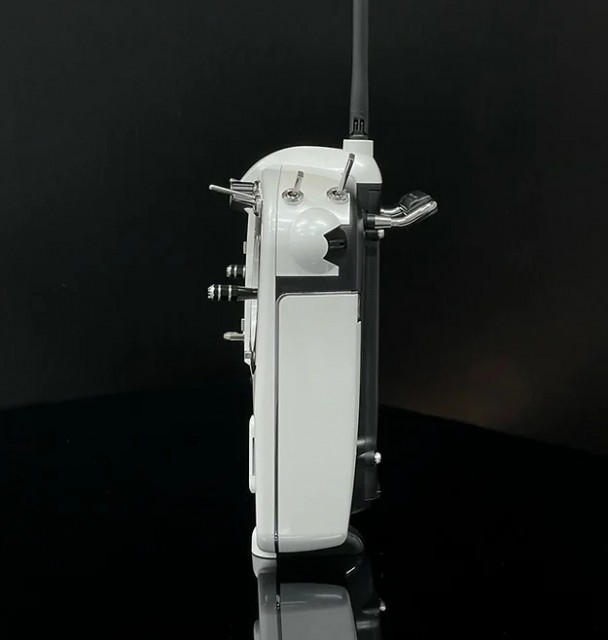

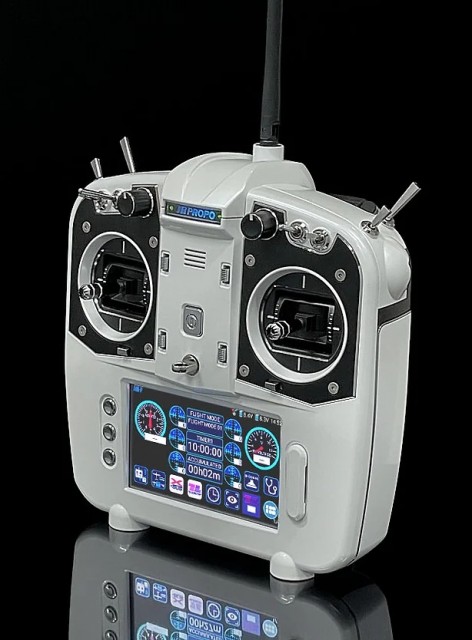

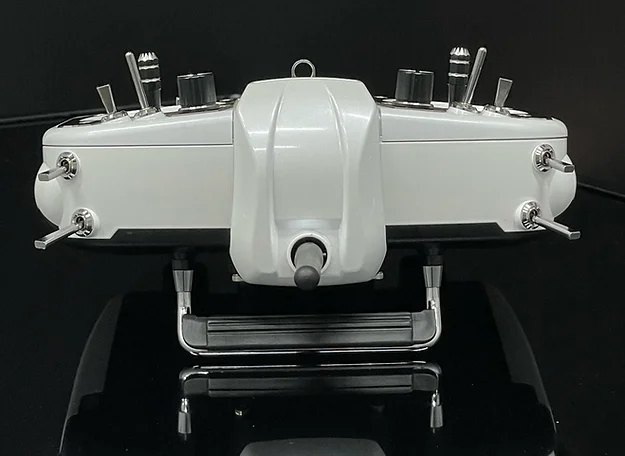

MATRIX 22 / DMSS 22ch transmitter

NOK23 995,00 Incl. VAT
  • Productinfo
  • Product reviews (0)

Inheriting the performance of the world's most reliable JR PROPO DMSS 2.4GHz R/C system "ELITE". The lightweight version "MATRIX22" is the new arrival of the DMSS radio series. Equipped with a stable application control OS-A and OS-B for communication control, further programming accumulated from JR PROPO's 40-year history. The performance on the processing speed of the program is greatly improved. The easy-to-handle flat design creates the ultimate in operability. The 2.5mm front metal garnish and metal gimbal base maintain rigidity and reduce weight with a plastic gimbal. The radio control method can be selected between the conventional PWM method and the JR own serial protocol bus communication of "XBus" The XBus function is equipped with a servo ID scanning function that makes it easy to check the setting of Servo ID that could not be confirmed with previous transmitters.



Modulation method: DMSS (Dual Modulation Spectrum System)
Operation method: 22 Channel Computer Mixing
Frequency modulation: 2.4GHz
Power supply: 7.2V lithium-ion battery 2L3350mA (2 batteries can be installed)
Neutral: 1.5ms
Included AC adapter: JAC-A1220
・Input voltage: AC100V-240V 50/60Hz
・Output voltage: DC12V 2.0A 24W
Weight: 870g (not including battery)

65,536 step stick resolution

16-bit color output Dual processors

Features

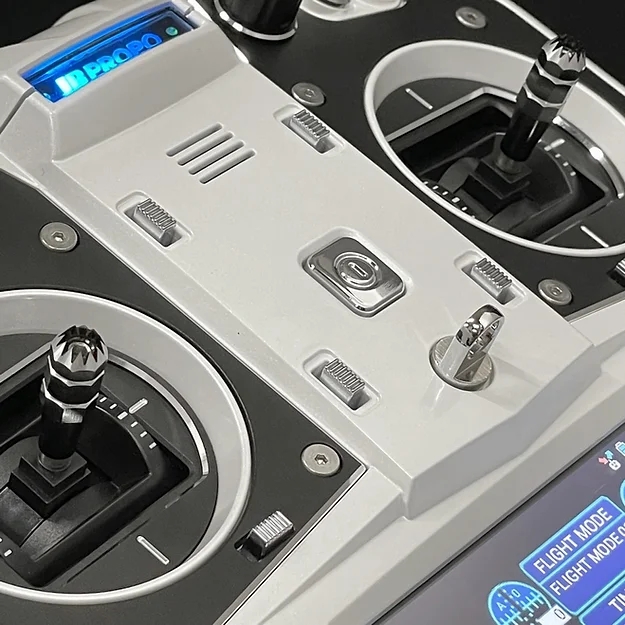

■ CNC machined and painted transmitter case components

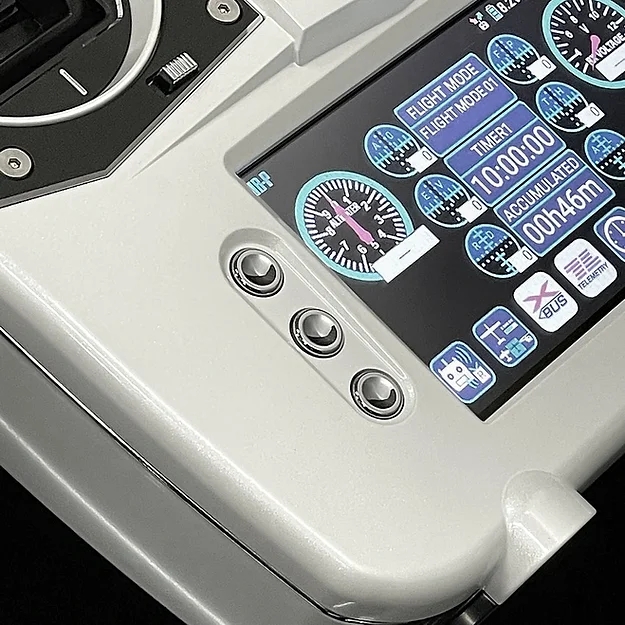

■ Quick response touch screen

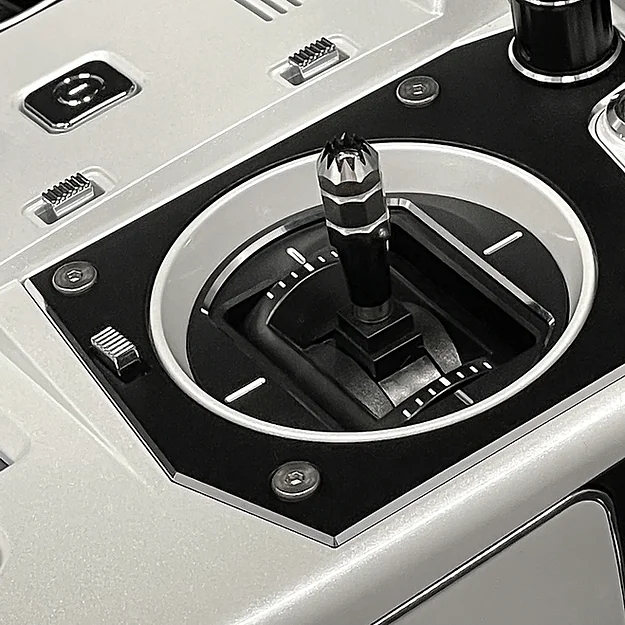

■ Precise CNC & Plastic Hybrid gimbals
■ High resolution Stick Control
■ The latest Android format & new main mother board
■ 22 channels in PWM mode / 64 channels in XBUS
■ The latest XBUS communication installed
■ Upgraded telemetry sensor capability/each telemetry function can handle 8 sensors
■ Voice alerts
■ XBUS Servo Programmer installed
■ Sequencer function for landing gear
■ SD Card slot available
■ USB Port Equipped (Capable to use PC Mouse operation)

  • BASIC

    【Function List】

    ■Reverse Switch
    ■D/R & EXP (Dual rate, Exponential)
    ・2segment / maximum15systems(SW Select / each flight mode)
    ・Type selectable(NORM / CURVE)
    ・・Curve set up: Mid8points over multi points
    ・Position set up:Maximum 15systems
    [Sub Menu]
    ・・・Delay Setting
    ・・・Auxiliary Channel
    ■SUB TRIM
    ■Travel adjusts
    ■Monitor (Servo monitor)
    [Sub Menu]
    ・・・Detail of channel
    ・・・Servo Test(Neutral/Slow/Quick/Step)
    ■LIMIT ADJUST
    ■SERVO SPEED
    ・right & left (up or down) Capable to put 2segment
    ・2systems
    ■OUTPUT CURVE
    ・Mid8points over multi points
     [Sub Menu]
    ・・・TRIM INPUT SETTING
    ■THROTTLE TRIM
    ・Throttle Cut (W/ Time lag function)
    ・Throttle Trim Memory
    ・Idle Adjustment
    ■PROGRAM MIXING
    ・Maximum 10systems (SW select / each flight mode)[W/Exponential]
    ・Type selectable (Normal/Curve)
    ・・Curve set up : Mid8points over multi points
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■TIMER
    ・3systems (Down timer/ Stop Watch)
    ・SW Select (Comply w/ Stick Position Switch)
    ・capable to set vibrator
     [Sub Menu]
    ・・・Interval Timer
    ・・・Accumulation Timer , Initialize
    ・・・Timer record: 20files

    【System List】

    ■MODEL SELECT
    ・Model Memory: Maximum 100files
     [Sub Menu]
    ・・Backup And Restore
    ・・Sort
    ・・Display Mode
    ■CHANNEL SETTING
     [Sub Menu]
    ・・・Aux Channel Setting:Up To 28ch
    ■TYPE SELECT
    ・3 Types(Airplane / Helicopter / Glider)
    ■FAIL SAFE
    ・HOLD / F.S Selectable
    ■WARNING
    ・SW SEL. / Capable to set on each flight mode
    ■BIND & RANGE
    ・Model Link Bind
    ・Range Check
    ■FM SETTING
    ・Up To 15 Ways
     [Sub Menu]
    ・・・Priority Setting
    ■XBUS SETTING
    ・Type Select(MODE A -JR / MODE B)
     <Setting >
    ・Servo  / Convertor
    ・・・ID Setting / Parameter set up
    ・・・ID Scan function
    ・Acro Gyro(AIR-P / AXIS being used)
    ■FM Delay
    ・Common set up / Independent set up
    ・Delay set up: Maximum delay in 10.sec
     [Sub Menu]
    ・・・Active channel set up
    ■TRIM SYSTEM
    ・Device Select
    ・Reverse
    ・Type Setting(NORM / L.S.T.)
    ・Trim Motion SW select(each flight mode)
     [Sub Menu]
    ・・・Flight Mode Group Setting
    ■All Servo Hold
    ・ON / OFF
    ■TRAINER
    ・Mode :2systems:Normal / Program
    ・Trainer Function mode SW select(each flight mode)
    ■ANALOG POSITION
    ・10systems
    ・Motion Switch select: Device/channel
    ■TX SETTING
     <Battery>
    ・Priority Setting:A&B Simo / Batt A /  Batt B
    ・Low Battery Alarm(Default:6.0V)
     <Idle Alert>
    ・Latency:Up To 254min(Default:30min)
     <System Sound>
    ・Tone(HIGH / LOW)
    ・Volume(Default:10)
     <BED BRIGHTNESS>
    ・Brightness(HIGH / LOW)
     <Firmware Version>
     [Sub Menu]
    ・・・Stick Calibration
    ■STICK ALERT(Only Throttle Ch.)
    ・3systems
    ・Alert motion SW select(Each flight mode)
    ■HARDWARE SETTING
    ・Reverse
    ・Input Type(Displayed value) select (analog) displayed value, select(analog)
    ・Calibration (Analog)
    ・Position setting (switch)
     [Sub Menu]
    ・・・Stick Mode Setting(M1 / M2 / M3 / M4)
    ■TELEMETRY LOG
    ・multiple data display

  • FUNCTION FOR AIRPLANE

    【Function List】

    ■DIFFERENTIAL
    ・Position Setting:Up To 15 Ways
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■THROTTLE CURVE
    ・Maximum 15systems
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ・・・Throttle Trim Offset
    ■AILE → RUDD MIX
    ・Position Setting:Up To 15 Ways
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ・・・Break / Hold Setting
    ■PITCH CURVE
    ・Position Setting:Up To 15 Ways
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■AILE → FLAP MIX
    ・Position Setting:Up To 15 Ways
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ・・・AIL Trim Setting
    ■FLAP SYSTEM
    ・SW select / each flight mode
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■ELEV → FLAP MIX
    ・Position Setting:Up To 15 Ways
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■THROTTLE HOLD
    ・SW selectable
    ■RUDD → AILE / ELEV MIX
    ・Position setting:2systems(SW select / each flight mode)
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■SNAP ROLL
    ・Roll set up:4systems(SW select / each flight mode)
    ・Stick position SW
    ■GYRO SENS
    ・Gyro mode selection Normal /Tail lock
    ・・Two gyro / Dual gain : setting possible when selected w/ 2ch control
    ・・3 axis gyro mode :when selected as 3channel
    ・Up To 15 Ways
     [Sub Menu]
    ・・・Delay Setting
    ・・・Lift up Setting.
    ・・・Trim Input Setting
    ■GEAR CONTROL
    ・ Mode selection :single mode/separate mode
    ・Maximum 3systems (Compatible w/ Gear cover A/B control)

    【System List】

    ■WING TYPE
    ・WING:14 Types
    ・・1 AILERON / FLAPERON  / 2 AILERONS
     2 AILERONS + 1 FLAP / 2 AILERONS + 2 FLAPS
     2 AILERONS + 4 FLAPS / 4 AILERONS
     4 AILERONS +1 FLAP/ 4 AILERONS +2 FLAPS
     DELTA / DELTA+1 FLAP / DELTA+2 FLAPS
     DELTA / 4 FLAPS
    ・TAIL:4 Types
    ・・1 ELEVATOR + 1 RUDDER / 2 ELEVATORS + 1 RUDDER
     2 ELEVATORS +2 RUDDERS / V TAIL
    ・THROTTLE:4 Types
    ・・1 THROTTLE / 2 THROTTLES
     3 THROTTLES / 4 THROTTLES

  • FUNCTION FOR HELICOPTER

    【Function List】

    ■THROTTLE CURVE
    ・Up To 15 Ways
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・TRIM INPUT SETTING)
    ・・・Hovering throttle setting (Point selection possible)
    ・・・Throttle trim off set
    ・・・ Curve type setting (NORM / GOV)
    ■PITCH CURVE
    ・Position Setting:Up To 15 Ways
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ・・・High Pitch trim setting (SW select / each flight mode)
    ・・・Hovering pitch trim setting (Point selection possible)
    ■THROTTLE MIXING
    ・AILE → THRO Correction
    ・ELEV → THRO Correction
    ・RUDD → THRO Correction
    ・・each 2 systems
    ・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■THROTTLE HOLD
    ・2systems setting capable
    ・SW select
    ・Stick auto setting
    ・Delay Setting
    ■SWASH MIXING
    ・w/ exponential
     [Sub Menu]
    ・・・E-Ring Setting
    ・・・Mixing Correction Setting
    ・・・・AILE → ELEV
    ・・・・ELEV → AILE
    ・・・・PIT → AILE
    ・・・・PIT → ELEV
    ・・・・・each 2 systems
    ・・・・・Mid8points over multi points(SW select / each flight mode)[w/exponential]
     [Sub Menu2]
    ・・・Delay Setting
    ・・・Trim Input Setting
    ■GYRO SENSE
    ・Gyro Mode Select:Normal / Tail Lock
    ・・Two Gyros  / Dual Gain: setting possible when selected w/ 2ch control
    ・・3 axis gyro mode :when selected as 3channel
    ・Maximum 15systems (SW select / each flight mode)
     [Sub Menu]
    ・・・Delay Setting
    ・・・LIFT UP SETTING
    ・・・Trim Input Setting
    ・・・CALIBRATION
    ■GOVERNOR
    ・Position Setting:Up To 15 Ways
     [Sub Menu]
    ・・・Delay Setting
    ・・・Trim Input Setting

    【System List】

    ■SWASH TYPE
    ・12 Types
    ・・NORMAL / 2 SERVOS 180° / 3 SERVOS 120°(2) / 3 SERVOS 135°(2)
     3 SERVOS 140°(2) / 3 SERVOS 90°(2) / 4 SERVOS 90°(2)
     [Sub Menu]
    ・・・Angle Correction(3SV135° / 3SV140° / 3SV90° / 4SV90°)

  • ETC

    [ ETC ]
    ・Video app. (Need SD Card or USB Memory)
    ・Calendar app.
    ・Clock app.
    ・Music app.(Need SD Card or USB Memory)
    ・Calculator app.
    ・Explorer app.
    ・Settings app.

    [ Widget ]
    ・Music ・Trim ・Timer ・RX Voltage
    ・Flight Mode ・Altitude★ ・RPM★ ・Altitude★
    ・Motive Voltage★ ・Temperature★ ・Motive Current★
    ・Variometer★ ・Air speed★ ・TX Battery
    ・Telemetry Log★ ・Capacity Watt★ ・Common

    ★This marking shows necessity of purchasing the optional telemetry sensors.
