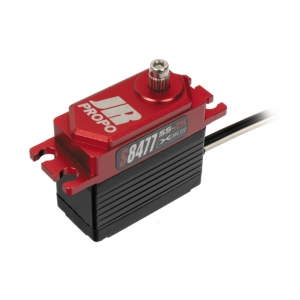

JR Propo S8477SS 2K

Article no.: JR78001

JR Propo S8477SS 2K

NOK1 395,00 Incl. VAT
In stock: 6 pc.
  • Productinfo
  • Product reviews (0)

What is 2K Servo?
Servo control frequency has been increased from the conventional 1kHz to 2kHz (Regardless of PWM connection or XBUS connection).
By doubling the control frequency, the movement becomes smoother, and the responsiveness, neutral holding power, and initial torque are also improved.
A smoother operation feeling has been achieved while significantly reducing the occurrence of hunting.

Stall torque:
・ 8.4V 41.0 kgf ・ cm
・ 7.4V 36.1.0 kgf ・ cm
・ 6.6V 32.2 kgf ・ cm

Speed:
・ 8.4V 0.10 sec / 60 °
・ 7.4V 0.11 sec / 60 °
・ 6.6V 0.12 sec / 60 °

Weight: 62 g / 2.19 oz

MPU: 32bit
Neutral: 1500 μS
Control frequency: XBUS 2kHz / PWM 333Hz

Use: General use (high spec)
Size: 36.5 x 19 x 40 mm
Lead length: 300mm
Operating voltage: 4.5V-8.5V
───────────────────
Programmable coreless servo
(Control frequency: 2K)
■ XBUS programmable
■ Full metal gear
■ Metal upper & heat sink case
■ Wide voltage (recommended 7.4V)
■ Double ball bearing
■ Operating angle: 120 ° / 180 ° (can be set with 150 ° / XBUS SERVO PROGRAMMER)
* Servo horn sold separately
