Scorpion Tribunus III 14-220A ESC SBEC

Article no.: SCTRI3-14-220

Scorpion Tribunus III 14-220A ESC SBEC

NOK5 495,00 Incl. VAT
In stock: 2 pc.
Wish list
  • Productinfo
  • Product reviews (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current* 220 Amps
Peak Current 300 Amps
Operating Voltage Range 13-61 Volts
BEC Output voltage: OFF / 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.55mOhms*2

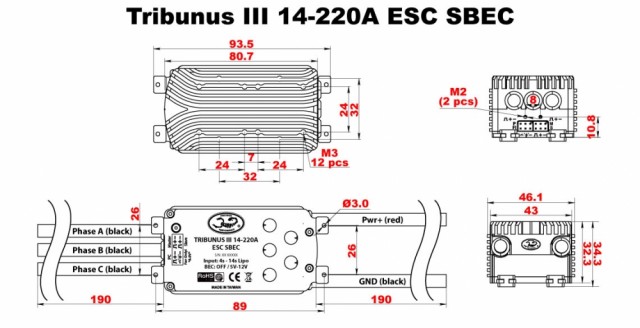

ESC Body Size 46.1 x 80.7 x 32.3 mm (1.81 x 3.17 x 1.27 in)
Mounting Tab Dimensions 26.0 x 89.0mm ( 1.02 x 3.50 in) / M3 Bolt
Weight (without wires) 194g ( 6.84oz)
Weight (With wires) 294g ( 10.37oz)
Drive frequency 8kHz - 32kHz Dynamic Frequency
Cable size 8 AWG x 200mm
Max Electrical RPM 240,000RPM
*Max Continuous Current is the rating at 100% throttle for 60 seconds with 35m/s of airflow



Supports real time telemetry with current, voltage, temperature, consumption, output power, BEC V and rpm for the following protocols:

- JR DMSS

- Mikado Vbar

- Futaba SBUS

- Jeti EXBUS

- FR.SKY S.Port

- Spectrum X.bus (with adaptor)

- Unlimited Other Systems (with unsolicited protocol)

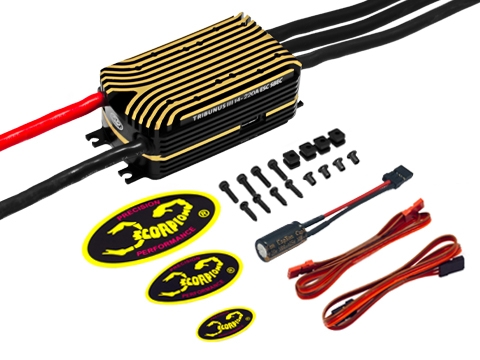

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables (410mm)
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
