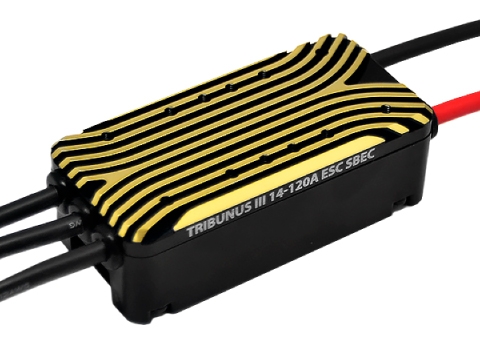

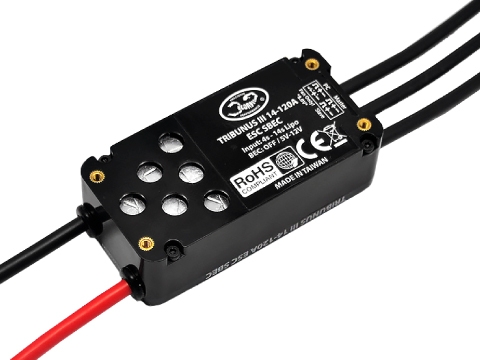

Scorpion Tribunus III 14-120A ESC SBEC

Article no.: SCTRI3-14-120

Scorpion Tribunus III 14-120A ESC SBEC

NOK4 095,00 Incl. VAT
Wish list
  • Productinfo
  • Product reviews (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current 120 Amps
Peak Current 150 Amps
Operating Voltage Range 12 - 61.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 10 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.6mOhms * 2

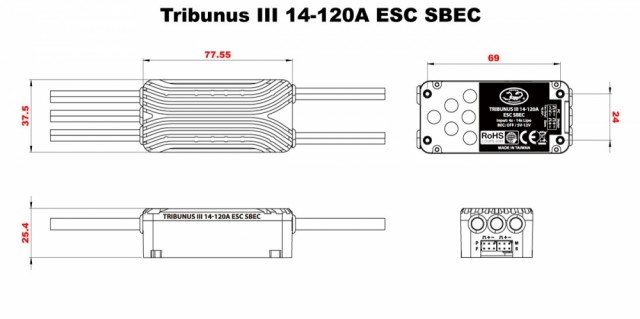

ESC Body Size 39.4 x 79.4 x 23.5 mm (1.55 x 3.12 x 0.92 in)
Integrated Mount Dimensions 26.0 x 72.0mm ( 1.0 x 2.83 in) / M2.5 Bolt
Weight (without wires) 82g (2.89oz)
Weight (with wires) 145g ( 5.11oz)
Drive frequency 8kHz - 32kHz



Supports real time telemetry with current, voltage, temperature, consumption, output power, BEC V and rpm for the following protocols:

- JR DMSS

- Mikado Vbar

- Futaba SBUS

- Jeti EXBUS

- FR.SKY S.Port

- Spectrum X.bus (with adaptor)

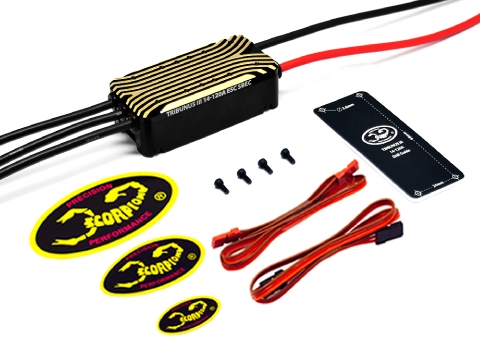

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x Drill Guide
