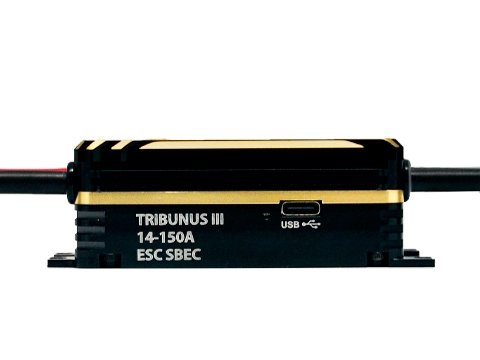

Scorpion Tribunus III 14-150A ESC SBEC

Article no.: SCTRI3-14-150

Scorpion Tribunus III 14-150A ESC SBEC

NOK4 995,00 Incl. VAT
Wish list
  • Productinfo
  • Product reviews (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current 150 Amps
Peak Current 200 Amps
Operating Voltage Range 12 - 61.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.6mOhms * 2

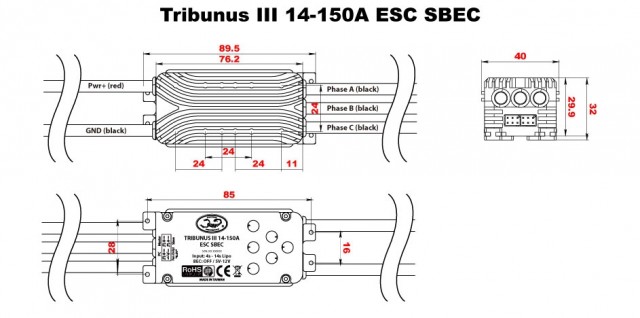

ESC Body Size 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt
Weight (With wires) 218g ( 7.69oz)
Weight (without wires) 148g (5.22oz)
Drive frequency 8kHz - 32kHz

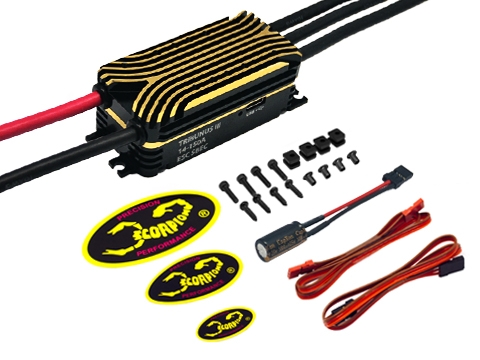

Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
