Very fast and strong XBUS programmable cyclic servo from JR Propo.
S8955SH and S8955SS are identical servos except that S8955SH as slow start = default OFF.
Specifications:
Stall torque: 34.2 (6.6V) /38.3 (7.4V) /43.5 (8.4V) kgcm
Speed: 0.06 (6.6V) /0.06 (7.4V) /0.05 (8.4V) Sec / 60 °
Weight: 79 g

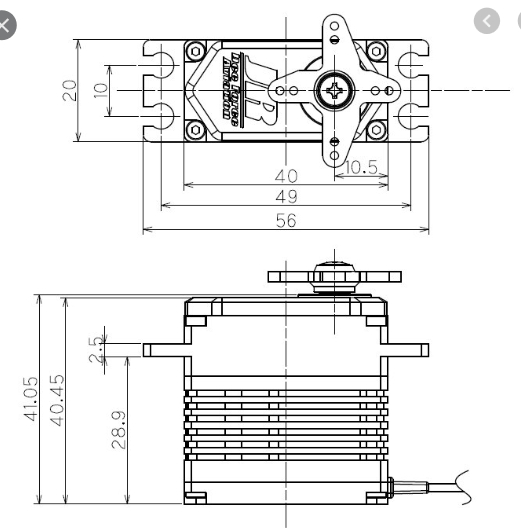

Dimensions: 40 x 20 x 40.5 mm
Lead length: 300mm
Operating voltage: 4.5V-8.5V
Neutral frequency: 1500μSec.
Control frequency: XBUS: 1KHz / PWM: 333Hz
■ High output brushless motor equipped ■ Programmable (slow start: OFF) ■ Full metal gear ■ Full metal case ■ Wide voltage ■ Double ball bearing ■ Operating angle: 120 ° / 180 °
* Servo horn is sold separately
The firmware in a 2K servo verifies the position of the servo arm two thousand times each second,
while the firmware found in previous servos verify the arm´s position one thousand times per second.
This greater number of verifications makes for a very precise servo, and gives it a more "solid" feel.
It is recommended to use a booster cable with 2K servos to ensure steady voltage at all times.
