Scorpion Tribunus III 14-150A ESC SBEC

Article no.: SCTRI3-14-150

Scorpion Tribunus III 14-150A ESC SBEC

NOK4 395,00 Previously:NOK4 895,00 Discount -10% Incl. VAT
In stock: 8 pc.
Wish list
  • Productinfo
  • Product reviews (0)

Supports JR Propo Telemetry protocol. Thus perfect together with the Trinity gyro!

Specifications

Max Continuous Current 150 Amps
Peak Current 200 Amps
Operating Voltage Range 12 - 61.0 Volts
BEC Output voltage: 5.1V to 12.1V adjustable
Max Continuous BEC Output 15 Amps @ 8.1 V
Peak BEC Output 30 Amps/1s @ 8.1 V
On Resistance 0.6mOhms * 2
ESC Body Size 40.0 x 77.1 x 29.9 mm (1.58 x 3.03 x 1.18 in)
Mounting Tab Dimensions 16.0 (Battery Side) / 28.0 (Phase Side) x 86.0mm ( 0.63 / 1.10 x 3.38 in) / M3 Bolt
Weight (With wires) 218g ( 7.69oz)
Weight (without wires) 148g (5.22oz)
Drive frequency 8kHz - 32kHz

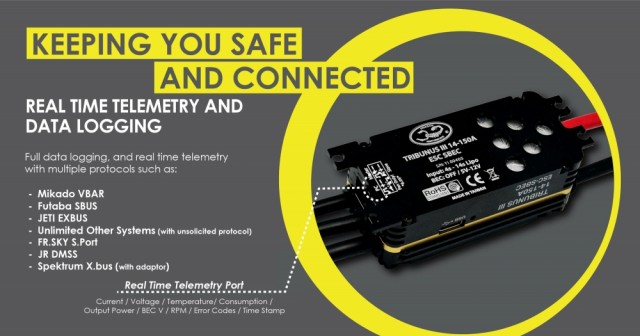

Supports real time telemetry with current, voltage, temperature, consumption, output power, BEC V and rpm for the following protocols:

- JR DMSS

- Mikado Vbar

- Futaba SBUS

- Jeti EXBUS

- FR.SKY S.Port

- Spectrum X.bus (with adaptor)



Included in the Box

1 x Tribunus III ESC
2 x BEC Cables
1 x Mounting Hardware Pack
1 x BEC Voltage Stabilizing Capacitor
