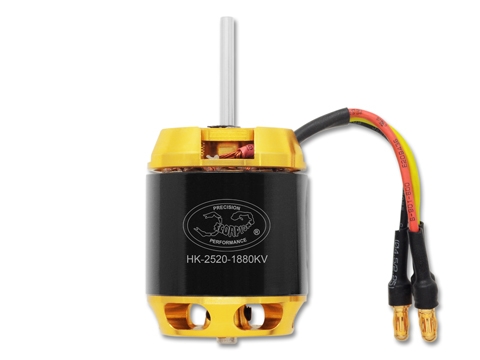

Scorpion HK-2520-1880KV motor with Forza 450 shaft

Article no.: SC-HK-2520-1880

Scorpion HK-2520-1880KV motor with Forza 450 shaft

NOK1 295,00 Incl. VAT
In stock: 3 pc.
Wish list
  • Productinfo
  • Product reviews (0)

For 6S lopo

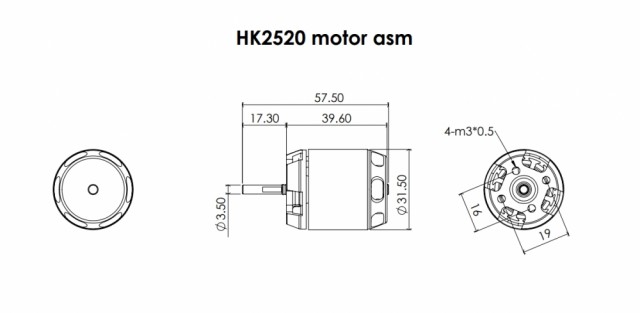

Specifications

Stator Diameter 25.0 mm (0.98 in)
Stator Thickness 20.0 mm (0.79 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 8 Turn Delta
Motor Wire 11-Strand 0.25mm
Motor Kv 1880Kv RPM/Volt
No-Load Current (IO/10V) 2.25 Amps
Motor Resistance (Rm) 0.026 Ohms
Max Continuous Current 38 Amps
Max Continuous Power 800 Watts
Weight 104 Grams (3.64 oz)
Outside Diameter 31.5 mm (1.24 in)
Shaft Diameter 4.0 mm (0.157 in)
Body Length 39.6 mm (1.56 in)
Overall Shaft Length 57.50 mm (2.46 in)
Max Lipo Cell 6s
Max Peak Current 50A (2 seconds)
Max Peak Power 1050 Watts (2 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

Included in the Box

1 x Scorpion HK-2520-1880KV Motor
3 x Female Connectors
3 x Heat Shrink
4 x M3 Screws
